DS push-in connection technology Din Rail TB – terminal blocks , Various Wire Diameter , AWG support , Various No. of connections , Width: 3.5 mm, Color: gray, Mounting type: NS35/7.5, NS35/15 imported stainless steel spring, unique production process can ensure excellent resilience and vibration resistance of the wiring.

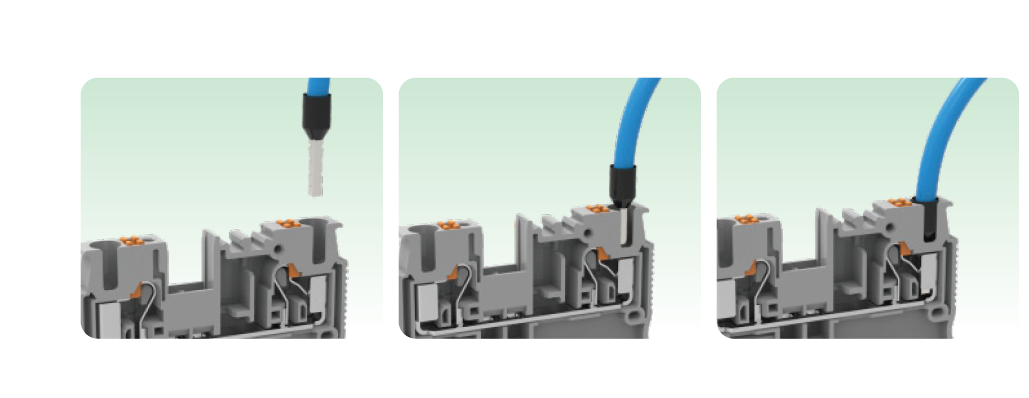

• Push-in connection technology, tool-free operation, more convenient and faster.
• With Release buttons, use slotted screw or Philip’s screwdriver the wire.
• Double channel for bridging can make circuit connection test more flexible.
• Unique pluggable jumper, high circuit connection efficiency.
• Optional marker to avoid wire mis-inserting.
• Equipped with test holes for easy test circuit.
Product certifications
UL
CE
